Overbooking on Airlines¶

Problem Definition¶

A low-cost airline, ACP (Flying High), operates four daily flights from Valencia to London at 10:00, 12:00, 14:00 and 16:00 hours. The first two flights hold 100 passengers, and the last two can fly up to 150 passengers each. If overbooking occurs, which implies having sold more seats than the plane actually has, the airline can place a passenger on a later flight. Evidently each delayed traveller is compensated by being paid €200 plus €20 for each hour delayed. The firm places delayed travellers on their own operating flights, or on one of the flights from other airlines departing at 20:00 hours, which always have available seats (a capacity of 999 passengers is always considered) at no extra charge. Let us assume that at the beginning of the day we know that ACP has sold 110, 160, 100 and 100 seats on its four daily flights, respectively. Model this problem as a maximal flow model at a minimum cost in order to minimise the airline’s total overbooking cost.

Solution¶

We are going to use networkx to draw the network and find the maximal flow at a minimum cost between two nodes. We are going to create a graph to model the selling process as a system with different states: source state (containing node S), flights sold state (comprised of nodes 10s, 12s, 14s, 16s), flights used state (comprised of nodes 10u, 12u, 14u, 16u, and 20u), and a sink state (containing node T). Edges are going to have two attributes:

\(a_i\): maximum capacity in number of flight tickets sold or used
\(c_i\): cost, cost for the company to move a passenger from one adjacent node to the other

The flow of edges going from source node S to each flight sold state node flight represent the seats sold (edge S,10s represents the flights sold for flight at 10:00h, edge S,12s for the flight at 12:00s, etc.). These flights have a capacity equal to the number of tickets sold (110, 160, 100 and 140 respectively), and a cost of 0; The flow of edges going from each flight sold state to each flight used state represents how the company arranges passengers in the different flights. The edges will have a maximum capacity equal to the maximum number of passengers in each flight (100, 100, 150, 150 and 999) respectively, and a cost equal to the overbooking cost for each delayed flight (that is, zero for no delay, 240 for two hours late, 280 for hours late, and so on).

Finally, flow in edges from the flights used state nodes to the sink node represent the total number of seats used in each plane. These edges will have a maximum capacity equal to the maximum capacity of each plane and a company cost of 0.

[8]:

import pandas as pd
import networkx as nx
from IPython.display import display, Markdown

# Create an empty directed graph structure:
G = nx.DiGraph()

# Add edges and define two attributes, production and costs:
G.add_edges_from([("S", "10s", {"capacity": 110, "cost": 0}),
    ("S", "12s", {"capacity": 160, "cost": 0}),
    ("S", "14s", {"capacity": 100, "cost": 0}),
    ("S", "16s", {"capacity": 140, "cost": 0}),
    ("10s", "10u", {"capacity": 100, "cost": 0}),
    ("10s", "12u", {"capacity": 100, "cost": 240}),
    ("10s", "14u", {"capacity": 150, "cost": 280}),
    ("10s", "16u", {"capacity": 150, "cost": 320}),
    ("10s", "20u", {"capacity": 999, "cost": 400}),
    ("12s", "12u", {"capacity": 100, "cost": 0}),
    ("12s", "14u", {"capacity": 150, "cost": 240}),
    ("12s", "16u", {"capacity": 150, "cost": 280}),
    ("12s", "20u", {"capacity": 999, "cost": 360}),
    ("14s", "14u", {"capacity": 150, "cost": 0}),
    ("14s", "16u", {"capacity": 150, "cost": 240}),
    ("14s", "20u", {"capacity": 999, "cost": 320}),
    ("16s", "16u", {"capacity": 150, "cost": 0}),
    ("16s", "20u", {"capacity": 999, "cost": 280}),
    ("10u", "T", {"capacity": 100, "cost": 0}),
    ("12u", "T", {"capacity": 100, "cost": 0}),
    ("14u", "T", {"capacity": 150, "cost": 0}),
    ("16u", "T", {"capacity": 150, "cost": 0}),
    ("20u", "T", {"capacity": 999, "cost": 0})])

# Draw the directed graph
pos = {"S": (0, 1),
       "10s": (1, 0),
       "12s": (1, 0.67),
       "14s": (1, 1.33),
       "16s": (1, 2),
       "10u": (2, 0),
       "12u": (2, 0.5),
       "14u": (2, 1),
       "16u": (2, 1.5),
       "20u": (2, 2),
       "T": (3, 1)
      }

nx.draw(G, pos)
nx.draw_networkx_labels(G, pos)
nx.draw_networkx_nodes(G, pos, node_size=600, node_color='#efefef')
nx.draw_networkx_labels(G, pos, font_weight='bold' )
c_label = nx.get_edge_attributes(G, 'cost')
nx.draw_networkx_edge_labels(G, pos, edge_labels=c_label)

[8]:

{('S', '10s'): Text(0.5, 0.5, '0'),
 ('S', '12s'): Text(0.5, 0.835, '0'),
 ('S', '14s'): Text(0.5, 1.165, '0'),
 ('S', '16s'): Text(0.5, 1.5, '0'),
 ('10s', '10u'): Text(1.5, 0.0, '0'),
 ('10s', '12u'): Text(1.5, 0.25, '240'),
 ('10s', '14u'): Text(1.5, 0.5, '280'),
 ('10s', '16u'): Text(1.5, 0.75, '320'),
 ('10s', '20u'): Text(1.5, 1.0, '400'),
 ('12s', '12u'): Text(1.5, 0.585, '0'),
 ('12s', '14u'): Text(1.5, 0.835, '240'),
 ('12s', '16u'): Text(1.5, 1.085, '280'),
 ('12s', '20u'): Text(1.5, 1.335, '360'),
 ('14s', '14u'): Text(1.5, 1.165, '0'),
 ('14s', '16u'): Text(1.5, 1.415, '240'),
 ('14s', '20u'): Text(1.5, 1.665, '320'),
 ('16s', '16u'): Text(1.5, 1.75, '0'),
 ('16s', '20u'): Text(1.5, 2.0, '280'),
 ('10u', 'T'): Text(2.5, 0.5, '0'),
 ('12u', 'T'): Text(2.5, 0.75, '0'),
 ('14u', 'T'): Text(2.5, 1.0, '0'),
 ('16u', 'T'): Text(2.5, 1.25, '0'),
 ('20u', 'T'): Text(2.5, 1.5, '0')}

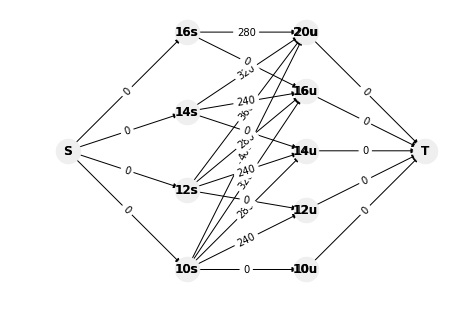

../../_images/MIP_solved_Overbooking_on_Airlines_%28Solved%29_2_1.png

[4]:

edges_df = nx.to_pandas_edgelist(G);
display(edges_df)

	source	target	capacity	cost
0	S	10s	110	0
1	S	12s	160	0
2	S	14s	100	0
3	S	16s	140	0
4	10s	10u	100	0
5	10s	12u	100	240
6	10s	14u	150	280
7	10s	16u	150	320
8	10s	20u	999	400
9	12s	12u	100	0
10	12s	14u	150	240
11	12s	16u	150	280
12	12s	20u	999	360
13	14s	14u	150	0
14	14s	16u	150	240
15	14s	20u	999	320
16	16s	16u	150	0
17	16s	20u	999	280
18	10u	T	100	0
19	12u	T	100	0
20	14u	T	150	0
21	16u	T	150	0
22	20u	T	999	0

[13]:

max_flow, flow= nx.maximum_flow(G, "S", "T", capacity='capacity')
costs = nx.get_edge_attributes(G, 'cost')
print("maximum flow value:", max_flow)
for k,v in flow.items():
    for k2 in v.keys():
        cost+=v[k2]*costs[(k,k2)]
        print("flow from ", k, " to ", k2, ": ", v[k2], "; Cost: ", v[k2]*costs[(k,k2)])

print ("Total cost is: ", cost)

maximum flow value: 510
flow from  S  to  10s :  110 ; Cost:  0
flow from  S  to  12s :  160 ; Cost:  0
flow from  S  to  14s :  100 ; Cost:  0
flow from  S  to  16s :  140 ; Cost:  0
flow from  10s  to  10u :  100 ; Cost:  0
flow from  10s  to  12u :  0 ; Cost:  0
flow from  10s  to  14u :  0 ; Cost:  0
flow from  10s  to  16u :  0 ; Cost:  0
flow from  10s  to  20u :  10 ; Cost:  4000
flow from  12s  to  12u :  100 ; Cost:  0
flow from  12s  to  14u :  50 ; Cost:  12000
flow from  12s  to  16u :  10 ; Cost:  2800
flow from  12s  to  20u :  0 ; Cost:  0
flow from  14s  to  14u :  100 ; Cost:  0
flow from  14s  to  16u :  0 ; Cost:  0
flow from  14s  to  20u :  0 ; Cost:  0
flow from  16s  to  16u :  140 ; Cost:  0
flow from  16s  to  20u :  0 ; Cost:  0
flow from  10u  to  T :  100 ; Cost:  0
flow from  12u  to  T :  100 ; Cost:  0
flow from  14u  to  T :  150 ; Cost:  0
flow from  16u  to  T :  150 ; Cost:  0
flow from  20u  to  T :  10 ; Cost:  0
Total cost is:  56400

[16]:

optimal_flow = {}
for i in G.nodes():
    for j in flow[i].keys():
        optimal_flow[i,j] = flow[i][j]

nx.draw(G, pos)
nx.draw_networkx_labels(G, pos)
nx.draw_networkx_nodes(G, pos, node_size=600, node_color='#efefef')
nx.draw_networkx_edge_labels(G, pos, edge_labels=optimal_flow)

print(flow)

{'S': {'10s': 110, '12s': 160, '14s': 100, '16s': 140}, '10s': {'10u': 100, '12u': 0, '14u': 0, '16u': 0, '20u': 10}, '12s': {'12u': 100, '14u': 50, '16u': 10, '20u': 0}, '14s': {'14u': 100, '16u': 0, '20u': 0}, '16s': {'16u': 140, '20u': 0}, '10u': {'T': 100}, '12u': {'T': 100}, '14u': {'T': 150}, '16u': {'T': 150}, '20u': {'T': 10}, 'T': {}}

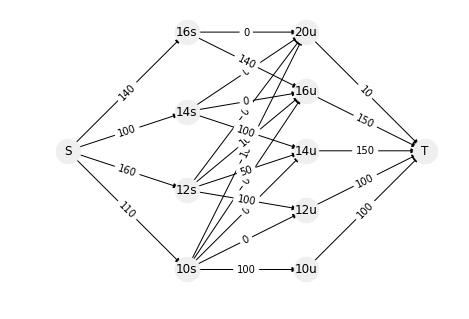

../../_images/MIP_solved_Overbooking_on_Airlines_%28Solved%29_5_1.png

[20]:

flow_df = pd.DataFrame.from_dict(flow, orient='index')
display(flow_df)

	10s	12s	14s	16s	10u	12u	14u	16u	20u	T
10s	NaN	NaN	NaN	NaN	100.0	0.0	0.0	0.0	10.0	NaN
10u	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	100.0
12s	NaN	NaN	NaN	NaN	NaN	100.0	50.0	10.0	0.0	NaN
12u	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	100.0
14s	NaN	NaN	NaN	NaN	NaN	NaN	100.0	0.0	0.0	NaN
14u	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	150.0
16s	NaN	NaN	NaN	NaN	NaN	NaN	NaN	140.0	0.0	NaN
16u	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	150.0
20u	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	10.0
S	110.0	160.0	100.0	140.0	NaN	NaN	NaN	NaN	NaN	NaN

[ ]:
